AUV-600 Intelligent Large AUV System for Deep-Sea Exploration
Product Information
Brand:
PALEGIX
Model number:
AUV-600

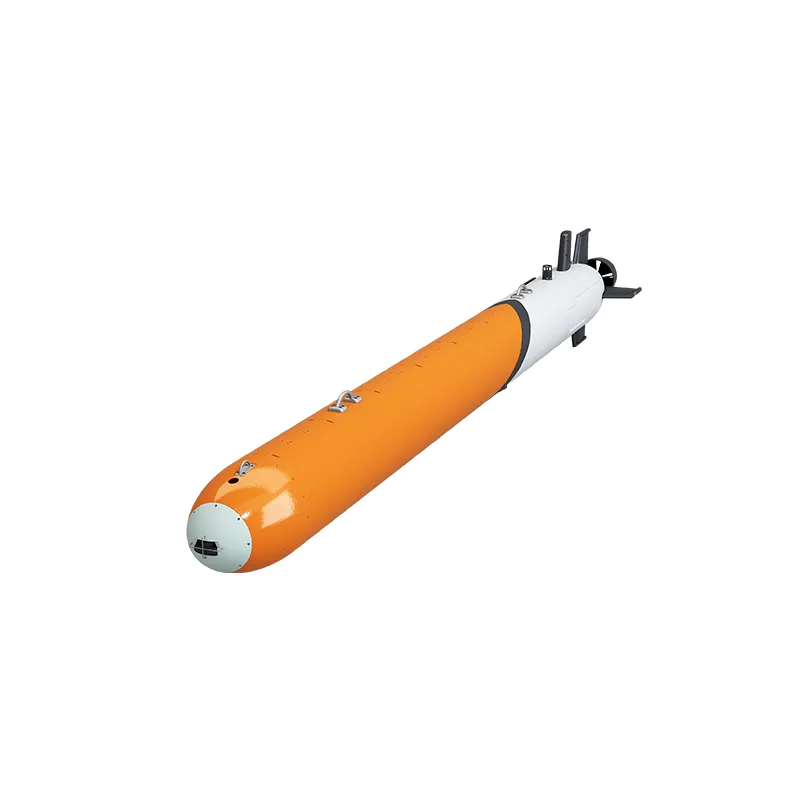

AUV-600 Large Autonomous Underwater Vehicle System
Intelligent Large AUV System for Deep-Sea Exploration and Marine Engineering Applications
AUV-600 is a large-scale autonomous underwater vehicle (AUV) designed for deep-sea exploration, marine engineering surveys, and scientific research applications.
Featuring intelligent autonomous operation capabilities, multi-vehicle coordination technology, and flexible communication solutions, AUV-600 provides an efficient platform for underwater data acquisition, marine environment monitoring, and large-scale underwater survey projects.
With a 600 mm diameter streamlined hull, 6000 m maximum operating depth, and 24-hour endurance at 3 knots, AUV-600 delivers reliable performance for complex underwater environments and long-duration marine operations.
Technical Specifications
| Parameter | AUV-600 |
| Vehicle Type | Large Autonomous Underwater Vehicle (AUV) |
| Diameter | 600 mm |
| Length | 6 m |
| Weight | Approx. 1200 kg |
| Maximum Operating Depth | 6000 m |
| Speed Range | 1–6 knots |
| Endurance | 24 hours @ 3 knots |
| Navigation System | INS + DVL + GNSS + USBL |
| Navigation Accuracy | ≤0.5% of traveled distance (customizable) |
| Communication | UHF, WiFi, 4G, Underwater Acoustic Communication |
| Operation Modes | Autonomous Operation, Route Planning, Remote Operation |
| Payload Options | CTD, Camera, High-Frequency Sonar, Multibeam Sonar, USBL, Other Marine Sensors |
Recommended products

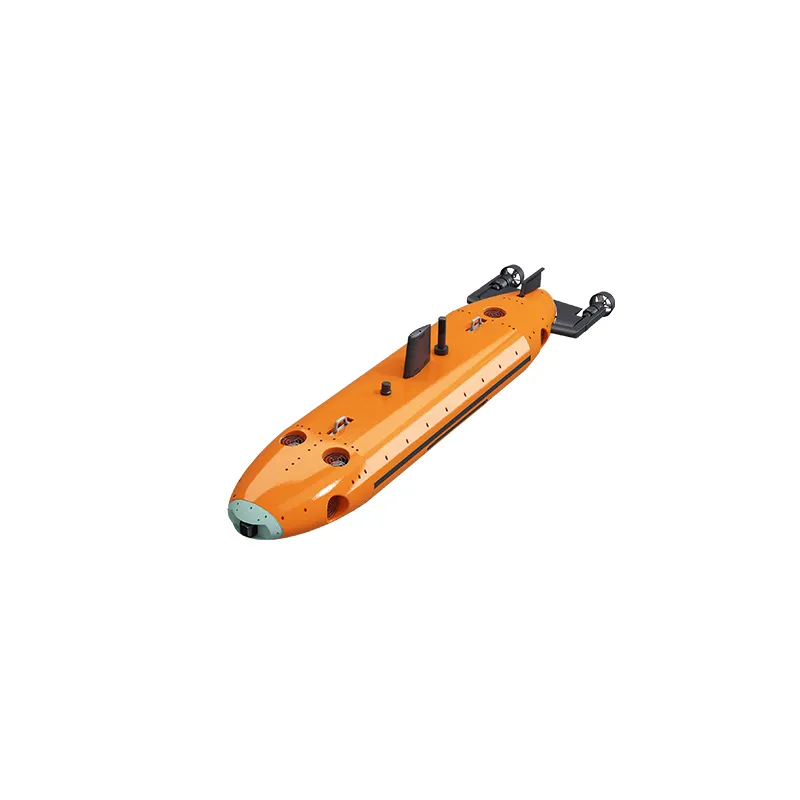

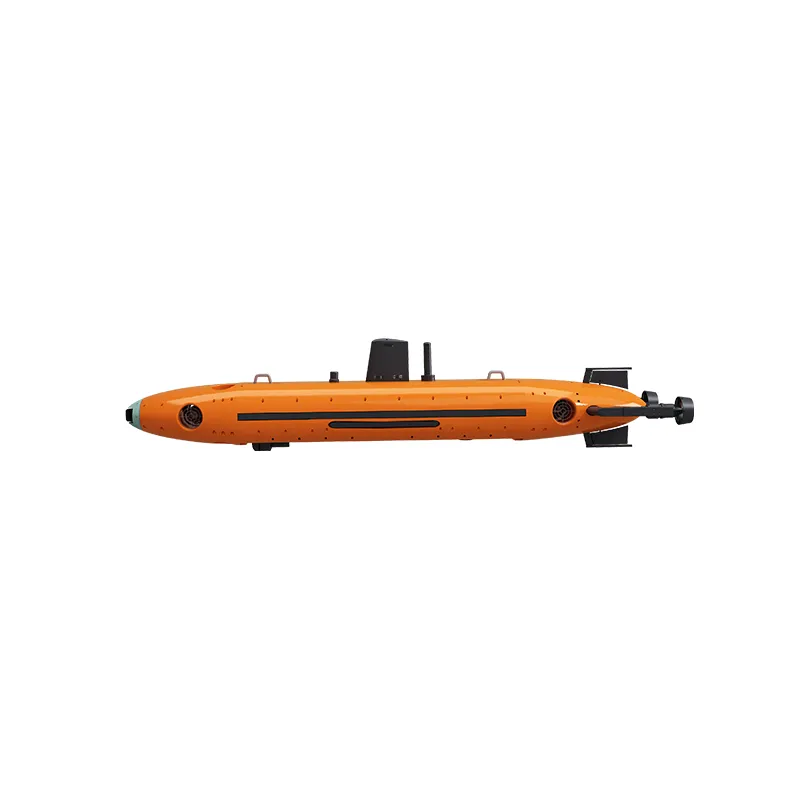

AUV-F760 Work-Class Autonomous Underwater Vehicle
The AUV-F760 is a self-developed work-class autonomous underwater vehicle designed for offshore wind farm operations, subsea pipeline inspection, and underwater infrastructure maintenance.

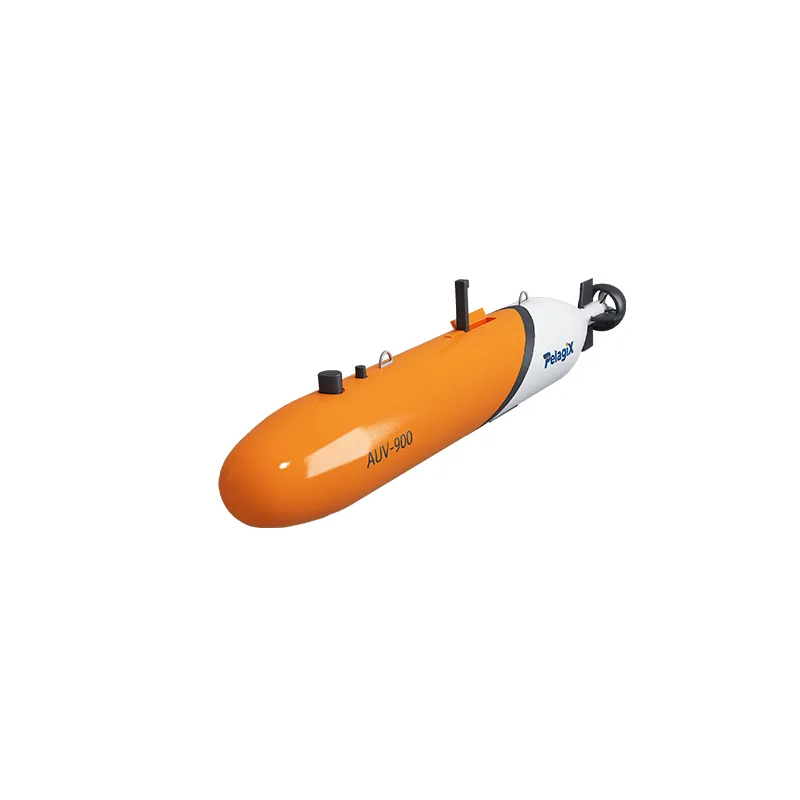

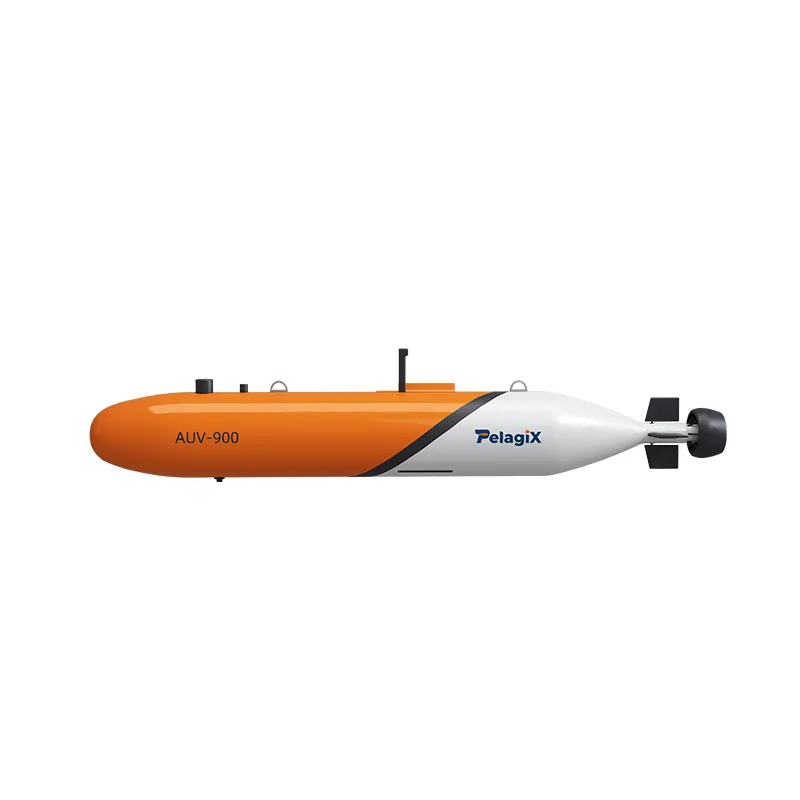

AUV-900 Autonomous Underwater Vehicle | Large Scale AUV
