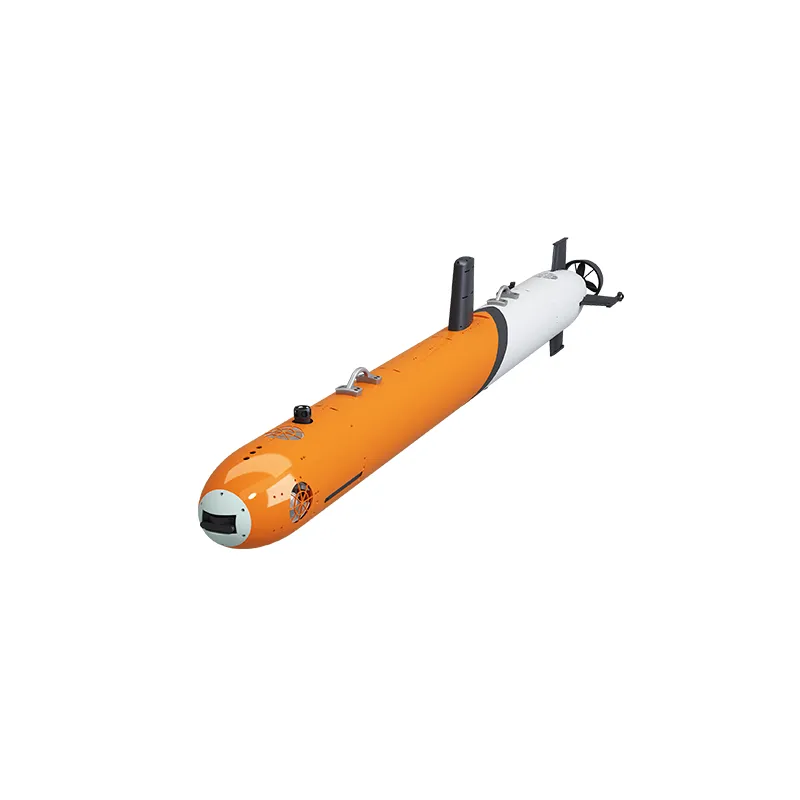

AUV-324 Medium Autonomous Underwater Vehicle
Product Information
Brand:
PALEGIX
Model number:
AUV-324
AUV-324 Medium Autonomous Underwater Vehicle
Compact and Reliable AUV System for Marine Survey and Scientific Research
AUV-324 is a high-performance autonomous underwater vehicle (AUV) designed for marine engineering surveys, scientific research, and underwater data collection applications.
Featuring a compact modular structure, advanced navigation technology, and flexible payload integration, AUV-324 provides reliable underwater operation capabilities for seabed mapping, marine environment monitoring, and underwater engineering inspection.
With a 324 mm diameter streamlined hull, 2000 m maximum operating depth, and up to 300 km endurance, AUV-324 is an efficient underwater autonomous vehicle solution for various marine exploration and survey applications.
Technical Specifications
| Parameter | AUV-324 |
| Vehicle Type | Medium Autonomous Underwater Vehicle (AUV) |
| Diameter | 324 mm |
| Length | 4 m |
| Weight | Approx. 300 kg |
| Maximum Operating Depth | 2000 m |
| Speed Range | 1–6 knots |
| Endurance | 20 hours+ @ 3 knots / Up to 300 km |
| Navigation System | INS + DVL + GNSS + USBL |
| Navigation Accuracy | 0.3% / 0.5% of traveled distance |
| Communication | UHF, WiFi, 4G, Underwater Acoustic Communication |
| Operation Modes | Autonomous Operation, Route Planning, Remote Operation |
| Payload Options | Underwater Camera, CTD, High-Frequency Sonar, Side-Scan Sonar, Multibeam Sonar, USBL |
