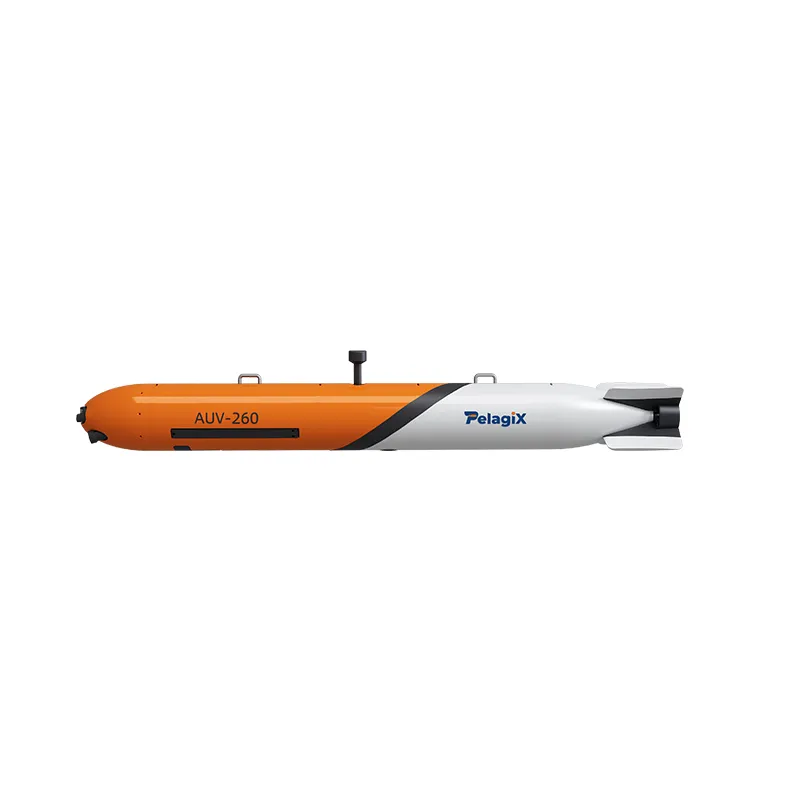

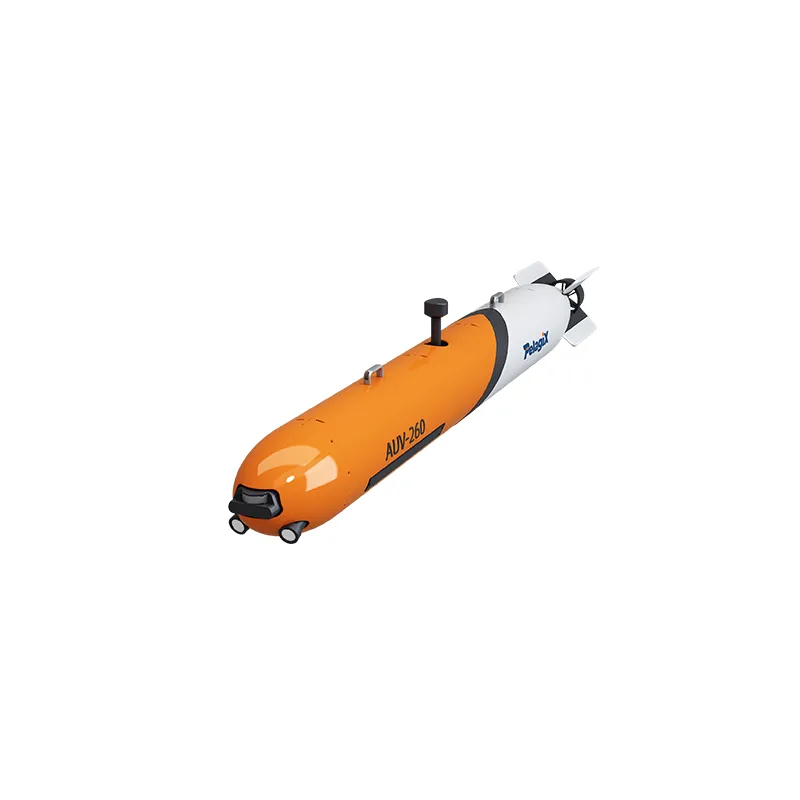

AUV-260 Small AUV | Deep-Diving Autonomous Underwater Vehicle for Marine Applications
Product Information
Brand:
PALEGIX
Model number:
AUV-260

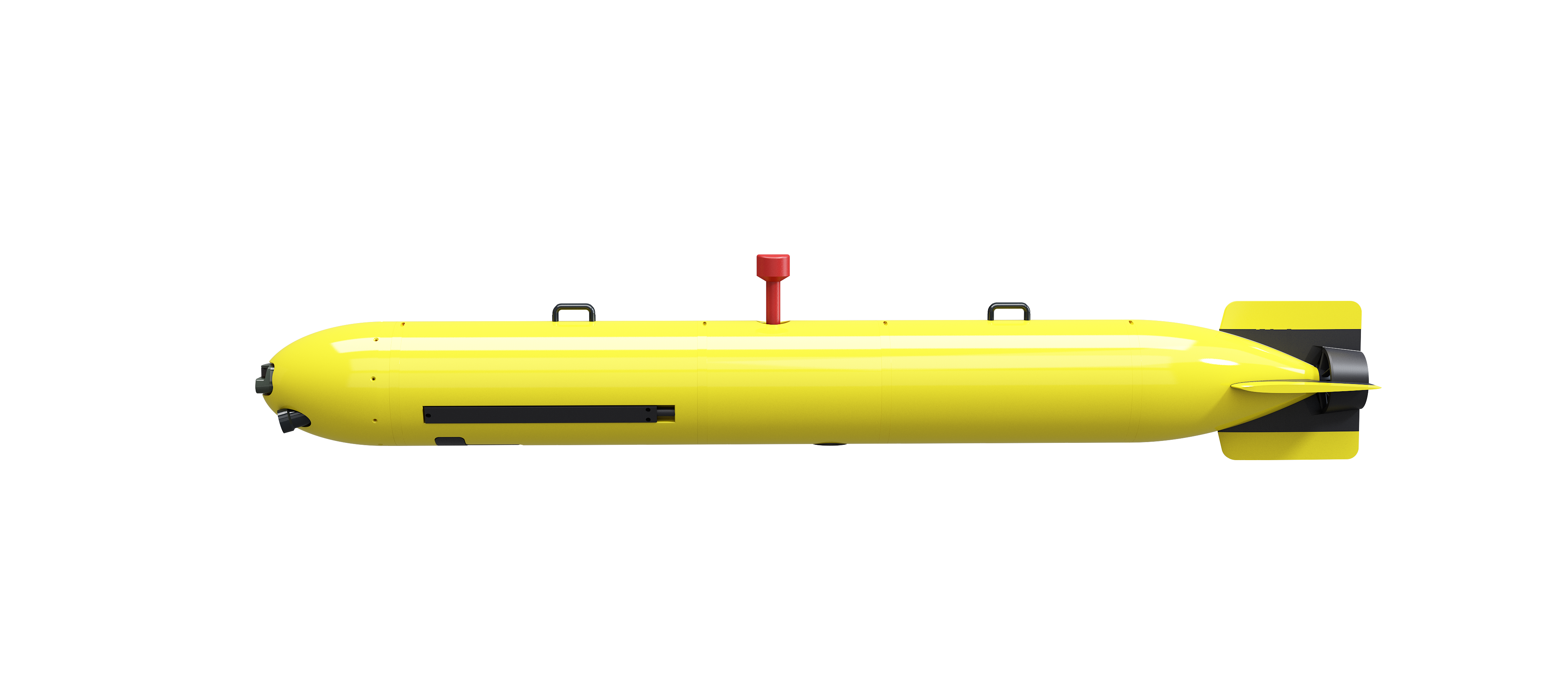

The AUV-260 Small AUV is a professional Autonomous Underwater Vehicle (AUV) designed for deeper-water marine survey, underwater inspection, and oceanographic research applications.
Featuring an optimized electronic control architecture, advanced navigation system, and enhanced payload capacity, AUV-260 provides a powerful underwater platform for large-area marine data collection and complex underwater operations.
With a maximum operating depth of 500 meters, AUV-260 is suitable for scientific research, offshore engineering inspection, marine environment monitoring, and underwater mapping applications.
Product Parameters
| Parameter | Specification |
| Vehicle Type | Autonomous Underwater Vehicle (AUV) |
| Physical Size | Φ260mm × 2.5m |
| Weight | 100kg (Standard) |
| Payload Capacity | 20kg |
| Maximum Operating Depth | 500m |
| Speed Range | 1–6 knots |
| Endurance | 12h (3 knots) |
| Propulsion System | Propeller propulsion + cross rudder control |
| Navigation System | INS + DVL + GNSS + USBL integrated navigation |
| Navigation Accuracy | Better than 0.3% / 0.5% / 1% range (customizable) |
| Communication | UHF, WiFi, 4G, AIS, Satellite (optional), Acoustic communication (optional) |
| Control System | Intelligent software control system with visual HMI |
| Movement Modes | Autonomous navigation, tracking, obstacle avoidance, remote control |
| Payload Interface | Modular sensor expansion |
Recommended products

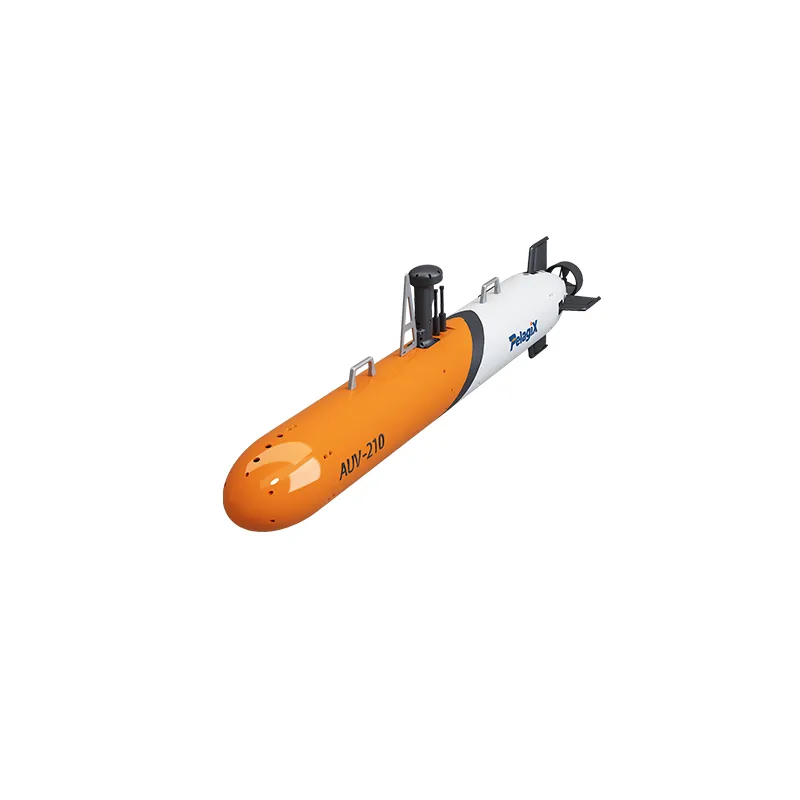

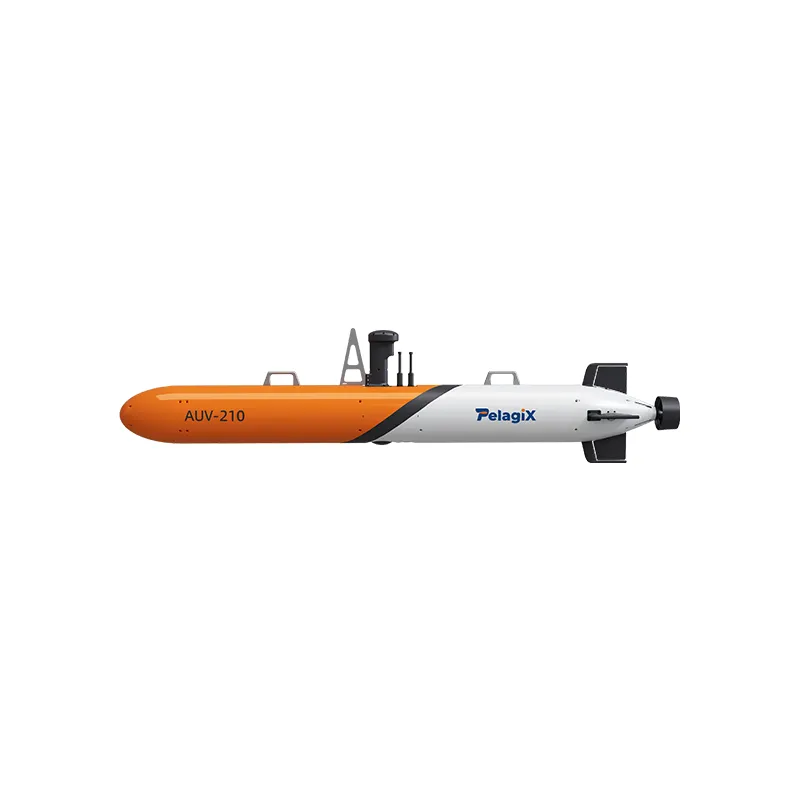

AUV-210 Small AUV | Compact Autonomous Underwater Vehicle for Marine Survey
AUV-210 Small AUV is a compact autonomous underwater vehicle featuring precise navigation, modular payload integration, and reliable performance for marine survey, inspection, and research applications.

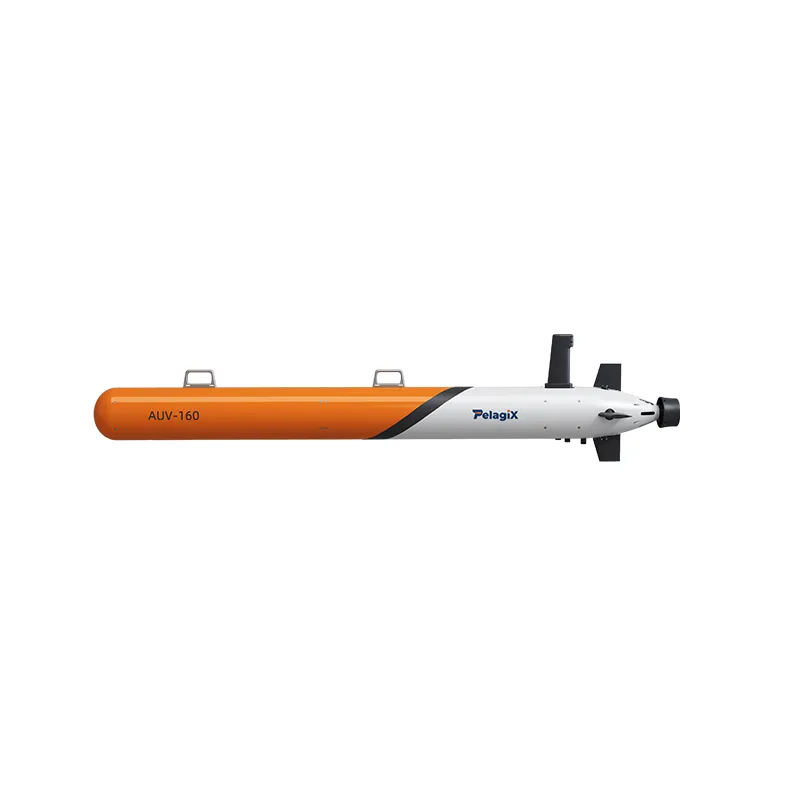

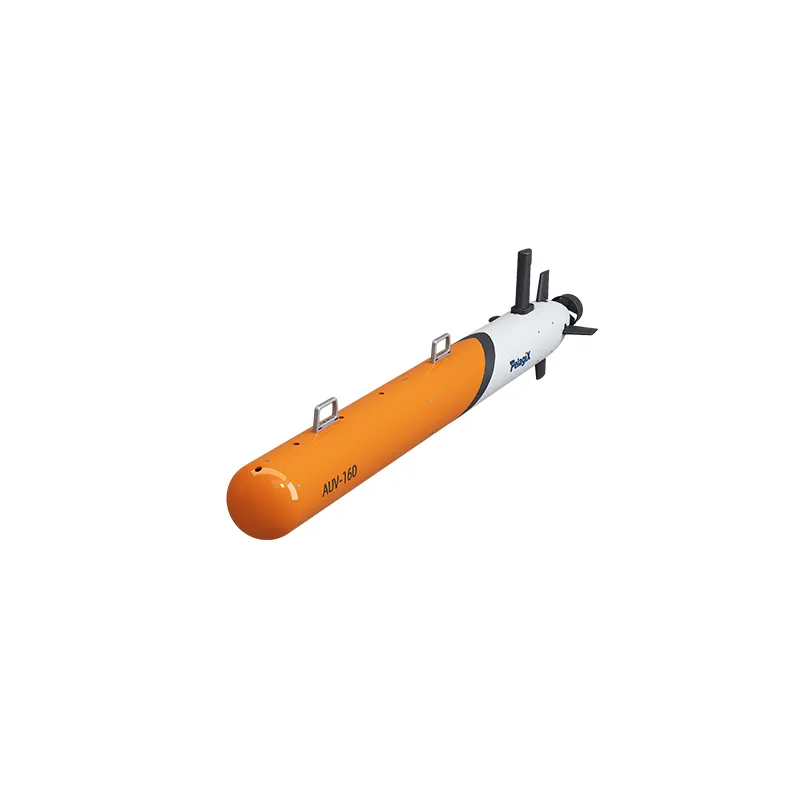

AUV-160 Micro AUV | Intelligent Autonomous Underwater Vehicle for Marine Applications
